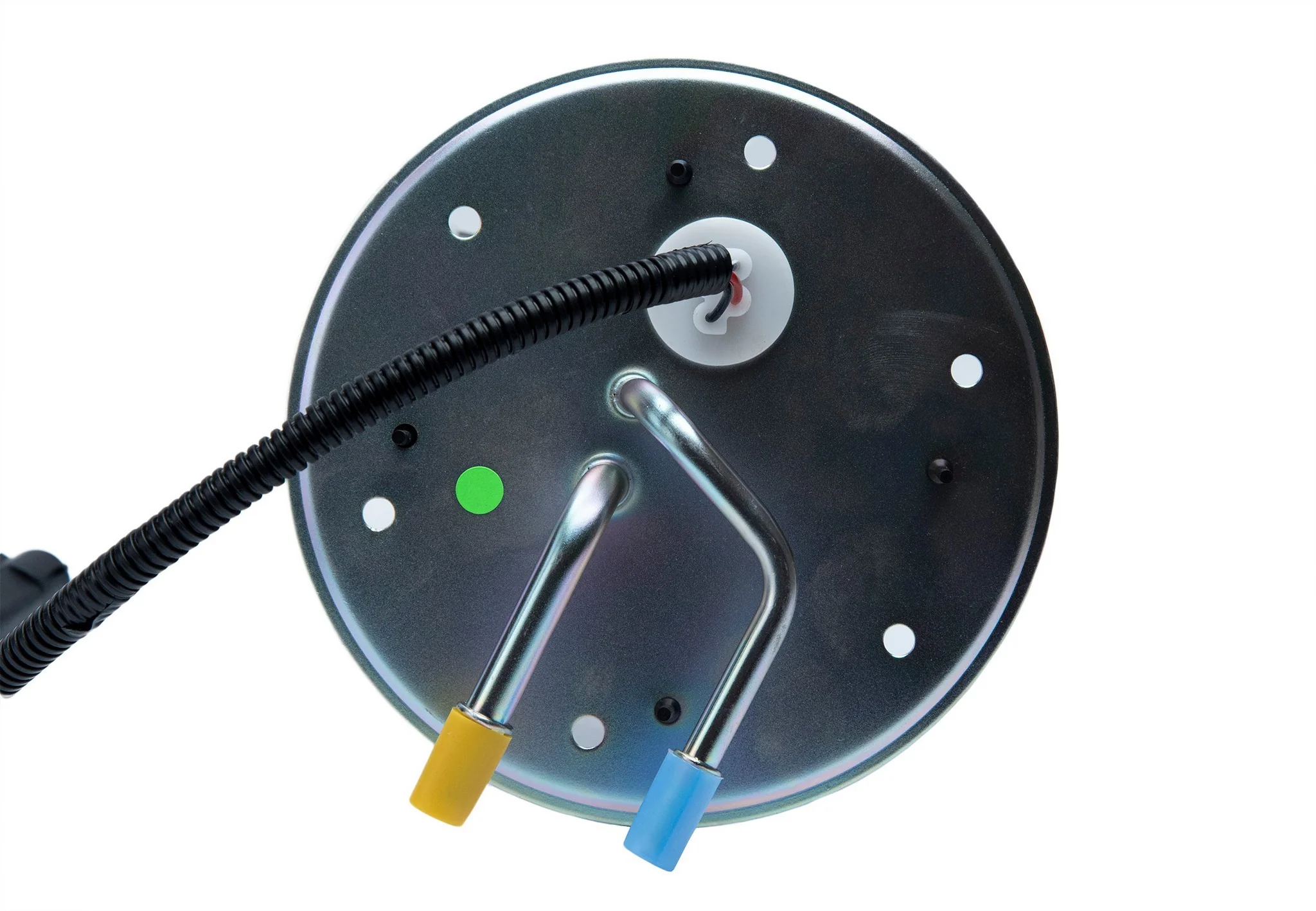

Autobest F1230A Fuel Pump and Sender Assembly

Overview of Autobest Fuel Pump and Sender Assembly F1230A

The Autobest Fuel Pump and Sender Assembly F1230A is designed specifically for Ford F-150 and F-150 Heritage models. This in-tank fuel pump assembly delivers reliable fuel flow and accurate fuel level readings to maintain optimal engine performance.

• Average current draw: 7 amps for efficient power consumption
• Fuel flow rating: 34 gallons per hour (GPH) to meet engine demands
• Includes fuel sending unit for precise fuel level monitoring
• In-tank design with external strainer for effective fuel filtration
• Maximum pump pressure of 90 PSI and minimum of 70 PSI for consistent fuel delivery
• Connector: single male round connector for secure electrical connection
• Includes NBR gasket/seal to ensure leak-free installation
• Outlet size: 3/8 inch quick connect return line for easy fuel line attachment

About the Fuel Pump and Sender Assembly Product Line

The Autobest Fuel Pump and Sender Assembly product line combines fuel delivery and fuel level sensing components into a single unit. This integration simplifies replacement and ensures compatibility between the pump and sender, reducing installation complexity and improving reliability. The F1230A model exemplifies this approach, providing both fuel pumping and sending functions tailored for Ford F-150 and F-150 Heritage trucks.

Detailed Product Description

The F1230A fuel pump assembly operates with an average current draw of 7 amps and delivers a steady fuel flow of 34 GPH, suitable for the fuel requirements of Ford F-150 and F-150 Heritage engines. Its in-tank design features an external strainer inlet sized at 0.433 inches, which helps prevent debris from entering the fuel system. The assembly includes a fuel sending unit for accurate fuel level readings and an NBR gasket to maintain a secure seal within the fuel tank. The single male round connector and 3/8 inch quick connect outlet ensure straightforward electrical and fuel line connections. This assembly is manufactured in China and is available to order for timely replacement needs.

Common Applications and Issues Addressed

• Restores proper fuel delivery in Ford F-150 and F-150 Heritage trucks experiencing fuel starvation
• Resolves inaccurate fuel gauge readings due to faulty sending units
• Replaces worn or damaged in-tank fuel pumps to maintain engine performance
• Addresses fuel pressure inconsistencies within the 70-90 PSI range
• Eliminates fuel leaks with included NBR gasket for a secure seal

Installation Notes and Tips

This fuel pump and sender assembly is designed for in-tank installation on compatible Ford F-150 and F-150 Heritage models. The unit includes a gasket but does not come with mounting hardware, so retain original components if possible. The external strainer inlet requires careful handling to avoid damage during installation. Ensure the single male round connector is properly seated to maintain electrical continuity. No specific installation warnings are provided, but following manufacturer guidelines for fuel system service is recommended.

Quality Assurance and Warranty

The Autobest F1230A fuel pump and sender assembly is manufactured to meet OEM specifications and is available to order with consistent quality standards. While specific warranty details are not provided, Autobest products typically adhere to industry quality controls to ensure reliable operation in Ford F-150 and F-150 Heritage vehicles.
