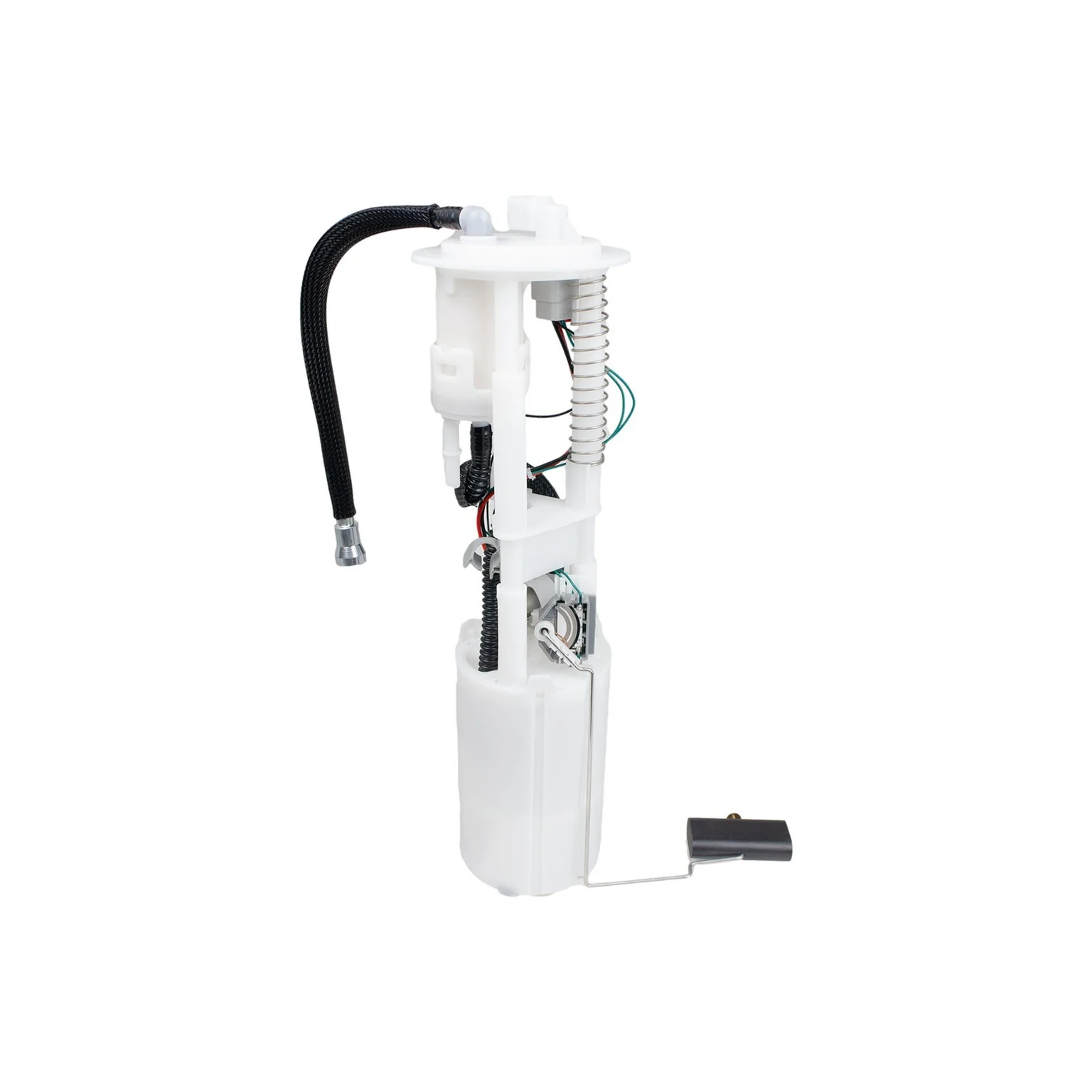

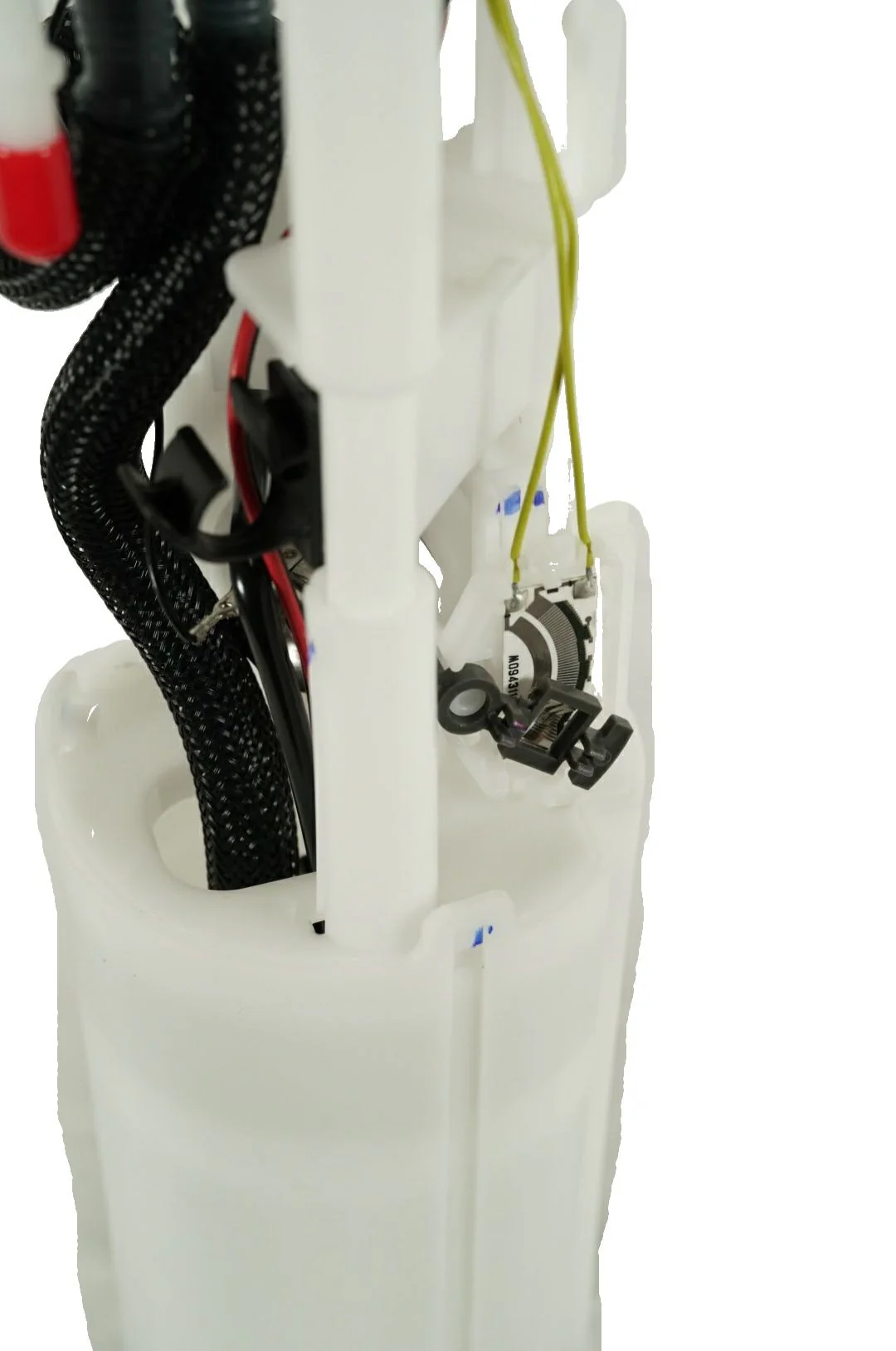

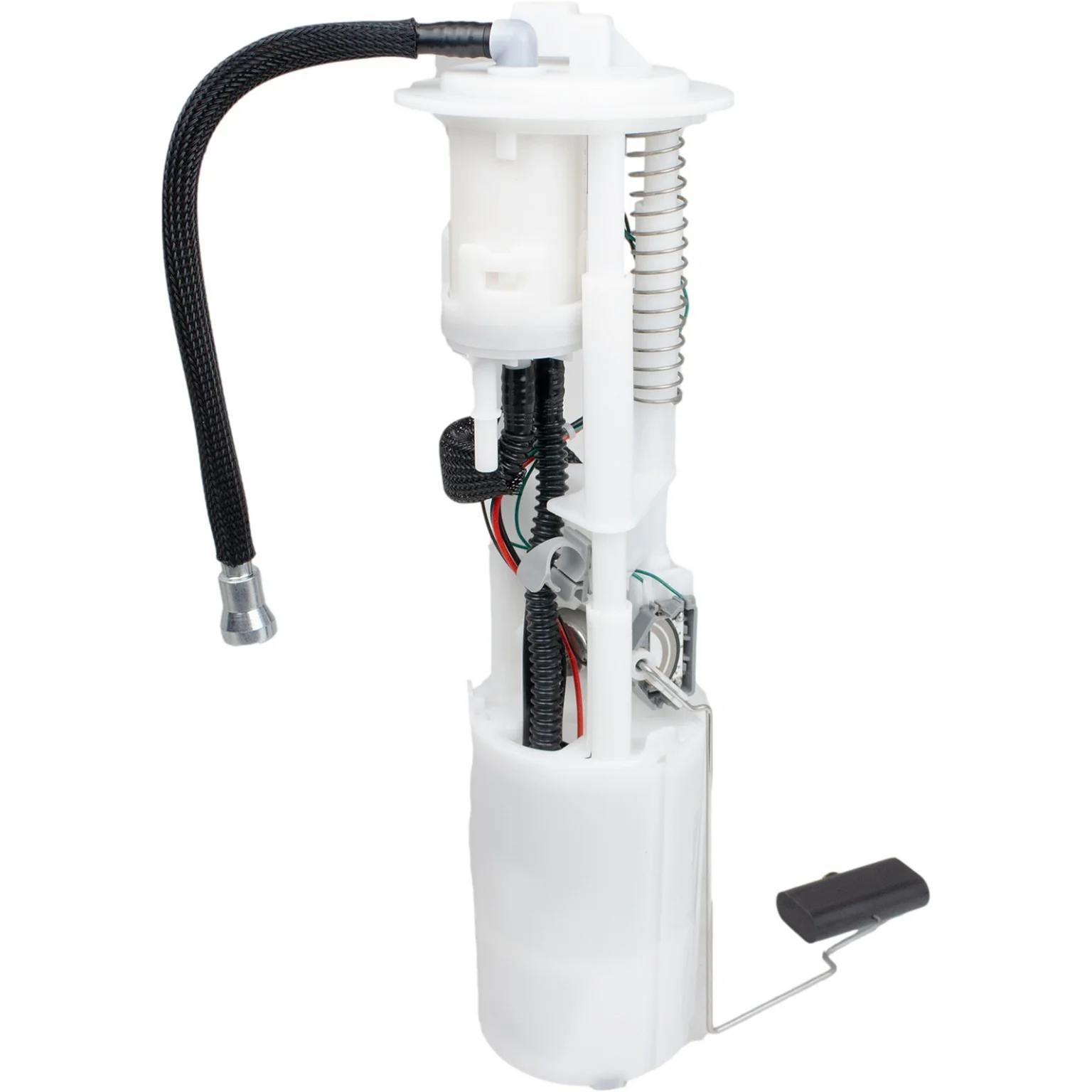

Autobest F2580A Fuel Pump Module Assembly - Left
Overview of Autobest Fuel Pump Module Assembly F2580A
The Autobest Fuel Pump Module Assembly F2580A is designed for reliable fuel delivery in select Cadillac and Chevrolet vehicles. Engineered as an in-tank fuel pump, it supports consistent fuel flow and pressure for optimal engine performance in models like the Corvette and XLR.
- Average current draw of 12.9 amps for efficient operation
- Fuel flow rating of 47.3 gallons per hour (GPH)
- Includes fuel sending unit and NBR gasket for secure sealing
- In-tank design with internal strainer inlet type
- Maximum pump pressure of 110 PSI and minimum of 80 PSI
- Male rectangular connector with one quick connect outlet (3/8 inch)
- Constructed with durable POM housing material
- Negative ground electrical system compatibility
Technical Details and Features
The F2580A fuel pump module assembly from Autobest is built to meet performance-grade standards. Its in-tank configuration includes an internal strainer to filter fuel before delivery, helping to protect the fuel system. The module features a male rectangular connector with a single quick connect outlet sized at 3/8 inch, facilitating straightforward electrical and fuel line connections. The included fuel sending unit provides accurate fuel level readings, while the NBR gasket ensures a reliable seal to prevent leaks. Operating within a pressure range of 80 to 110 PSI, this pump supports consistent fuel supply under various driving conditions. The POM housing material offers durability and resistance to fuel corrosion, suitable for the demands of Cadillac Corvette and Chevrolet XLR vehicles.
Compatible Vehicles and Applications
This fuel pump module assembly is compatible with the following vehicles:
- Cadillac Corvette
- Chevrolet Corvette
- Cadillac XLR
- Chevrolet XLR
It is designed to replace the original fuel pump module in these models, ensuring proper fuel delivery and system functionality.
Common Issues Addressed by This Fuel Pump Module
- Intermittent or complete fuel delivery failure
- Inaccurate fuel level readings due to faulty sending unit
- Low fuel pressure causing engine performance problems
- Fuel pump noise or overheating from worn components
- Fuel leaks due to degraded seals or gaskets
Installation Notes and Tips
The Autobest F2580A is an in-tank fuel pump module assembly that requires careful handling during installation. Ensure the vehicle’s fuel system is depressurized before removal. The module includes a fuel sending unit and gasket but does not come with mounting hardware, so retain original mounting components. Verify connector compatibility—this unit uses a male rectangular connector and a single quick connect outlet. Follow manufacturer guidelines for torque specifications and safety precautions when working with fuel system components.
Quality Assurance and Warranty
Autobest provides this fuel pump module assembly with a performance-grade rating, manufactured to meet OEM standards. The product is available to order and backed by Autobest’s quality control processes. Warranty details should be confirmed at the point of purchase, as coverage may vary depending on distributor policies.
