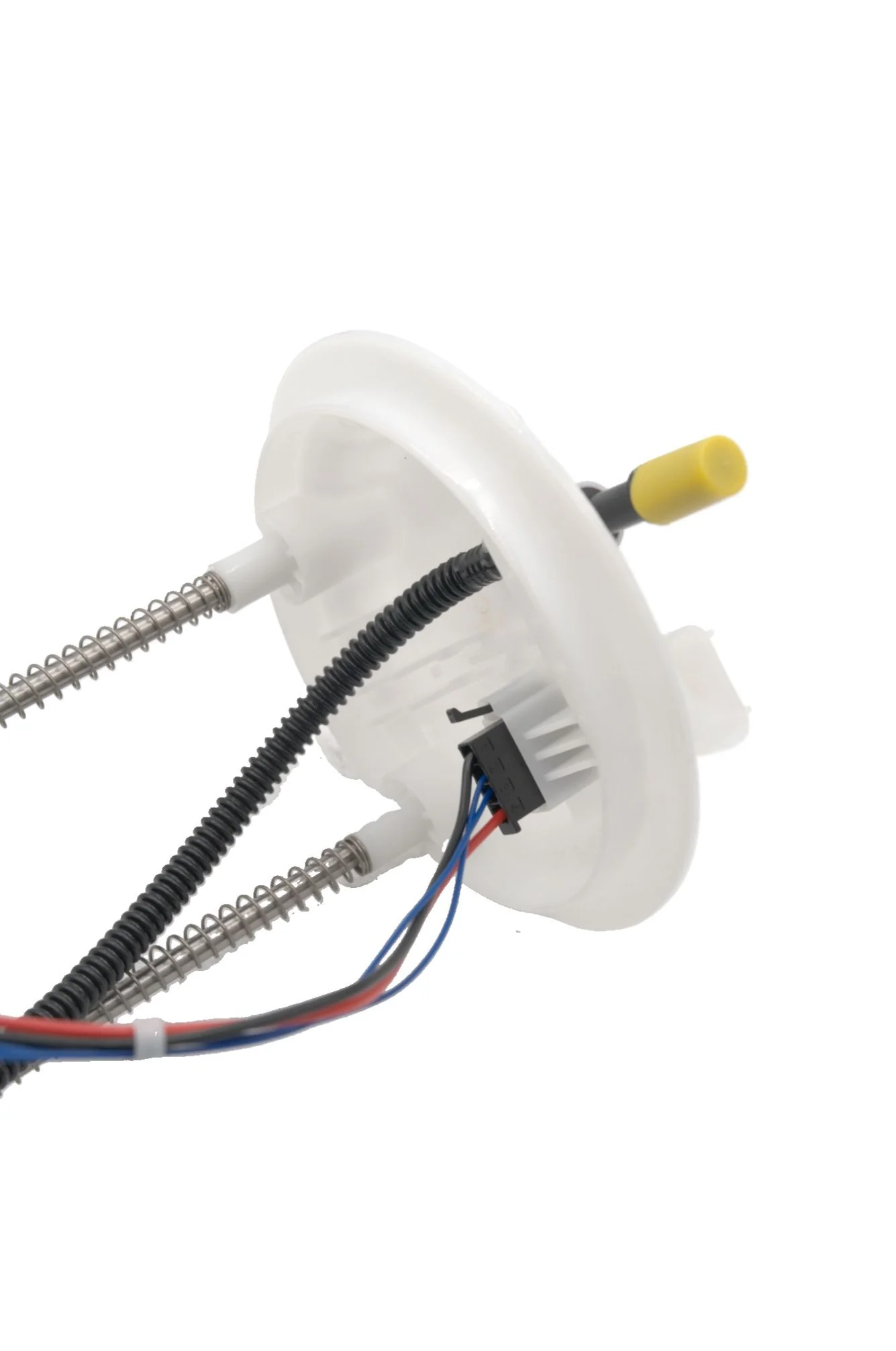

Autobest F3281A Fuel Pump Module Assembly
Reliable Fuel Pump Module Assembly for Ram 1500
The Autobest F3281A fuel pump module assembly is designed to provide consistent fuel delivery for Ram 1500 trucks. Engineered for in-tank installation, this module ensures efficient fuel flow and reliable operation under regular driving conditions.
- Average current draw of 11 amps for efficient power consumption
- Fuel flow rating of 42.9 gallons per hour (GPH) to meet engine demands
- Includes fuel filter and fuel sending unit for comprehensive fuel system support
- Female rectangular connector with one connection point for secure electrical fit
- Constructed with durable POM housing and FKM gasket for long-lasting performance
- Internal strainer inlet type with 0.433 inch size for effective fuel filtration
- Quick connect outlet type with 3/8 inch outlet size for easy fuel line attachment
- Compatible with Ram 1500 models requiring an in-tank fuel pump module
Technical Details and Construction
The Autobest F3281A fuel pump module assembly features a robust POM (polyoxymethylene) housing that resists wear and chemical exposure inside the fuel tank. The included FKM gasket material provides a reliable seal to prevent leaks and maintain system integrity. This module is designed with an internal strainer inlet to filter fuel before it reaches the pump, helping to protect the fuel system from contaminants. The fuel pump operates at an average current draw of 11 amps and delivers a flow rate of 42.9 GPH, suitable for maintaining optimal fuel pressure and engine performance in Ram 1500 trucks.
Compatible Applications and Common Issues Addressed
- Replacement for failing or noisy fuel pump modules in Ram 1500 vehicles
- Resolves fuel delivery problems such as engine hesitation or stalling
- Addresses fuel gauge inaccuracies by including a fuel sending unit

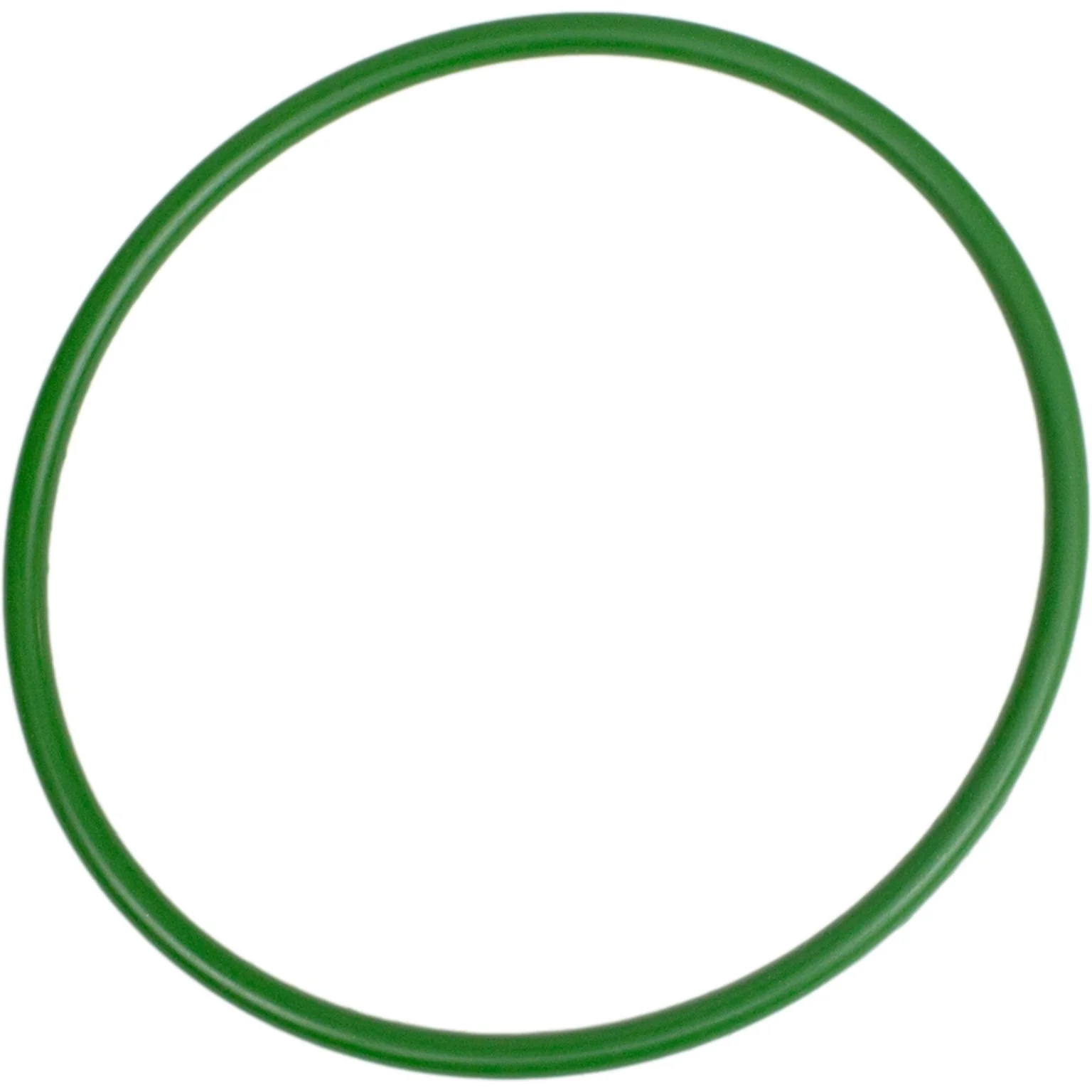

- Helps prevent fuel leaks with the included FKM gasket seal
- Improves fuel filtration with the integrated fuel filter and internal strainer
Installation Notes and Tips
This fuel pump module assembly is designed for in-tank installation on Ram 1500 trucks. It features a single female rectangular connector and a quick connect outlet for straightforward electrical and fuel line connections. No mounting hardware is included, so ensure existing hardware is in good condition or replaced as needed. There are no specific installation warnings associated with this part, but proper handling and safety precautions when working with fuel systems are recommended.
Quality Assurance and Availability
The Autobest F3281A fuel pump module assembly is manufactured in China and is available to order for Ram 1500 applications. It includes both the fuel pump and module components, along with a fuel filter and sending unit, ensuring a comprehensive replacement solution. While no explicit warranty information is provided, Autobest products typically meet industry standards for quality and reliability.
Original: $183.31
-65%$183.31
$64.16
