Brembo 09.D931.11 Disc Brake Rotor - Front Right
Overview of Brembo PRIME Disc Brake Rotor 09.D931.11
The Brembo PRIME disc brake rotor 09.D931.11 is engineered for Porsche 718 Boxster, 718 Cayman, 911, Boxster, and Cayman models. Designed with high carbon cast iron and a vented construction, this rotor offers reliable braking performance and durability for these specific vehicles.
- Material: High carbon cast iron for enhanced heat dissipation
- Nominal Thickness: 28 mm with a discard thickness of 26 mm

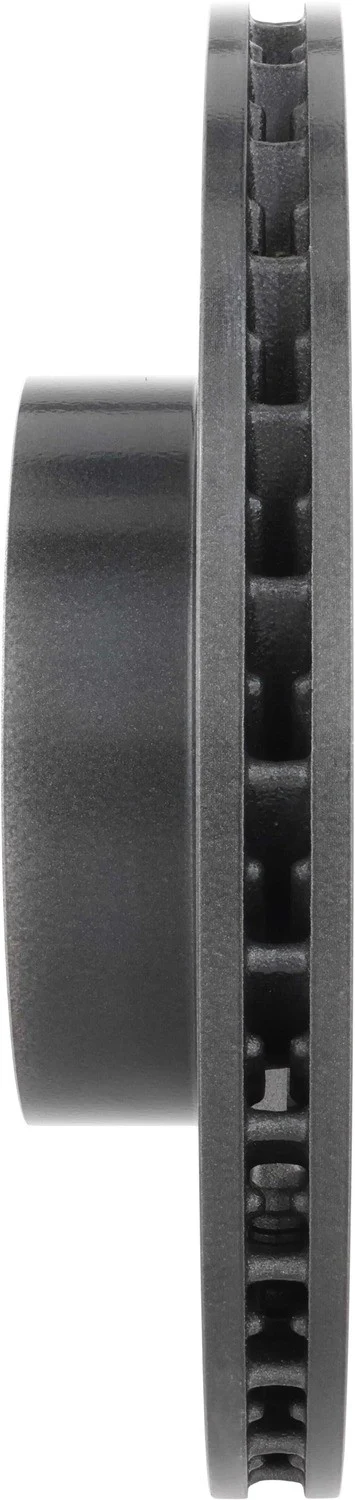

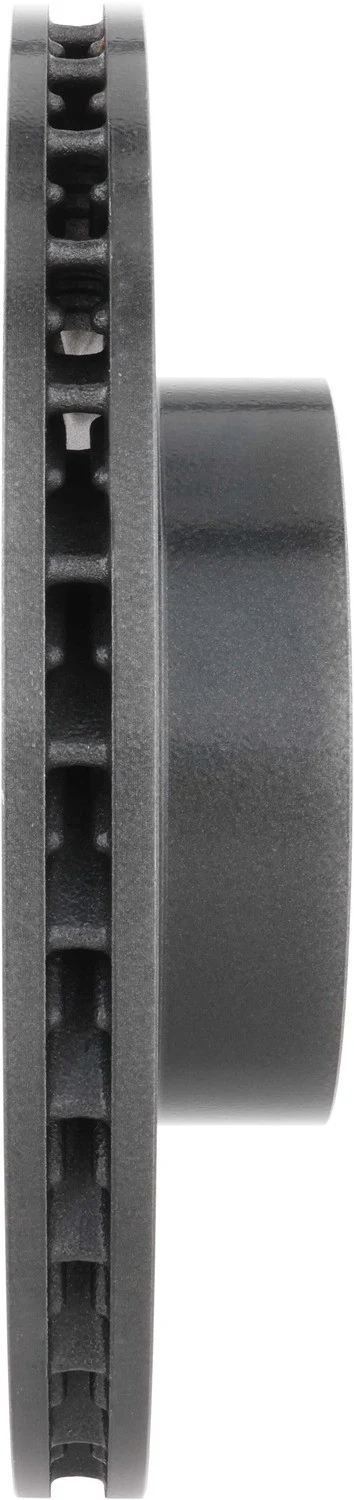

- Vented full cast construction to improve cooling
- Rust resistant coating to reduce corrosion

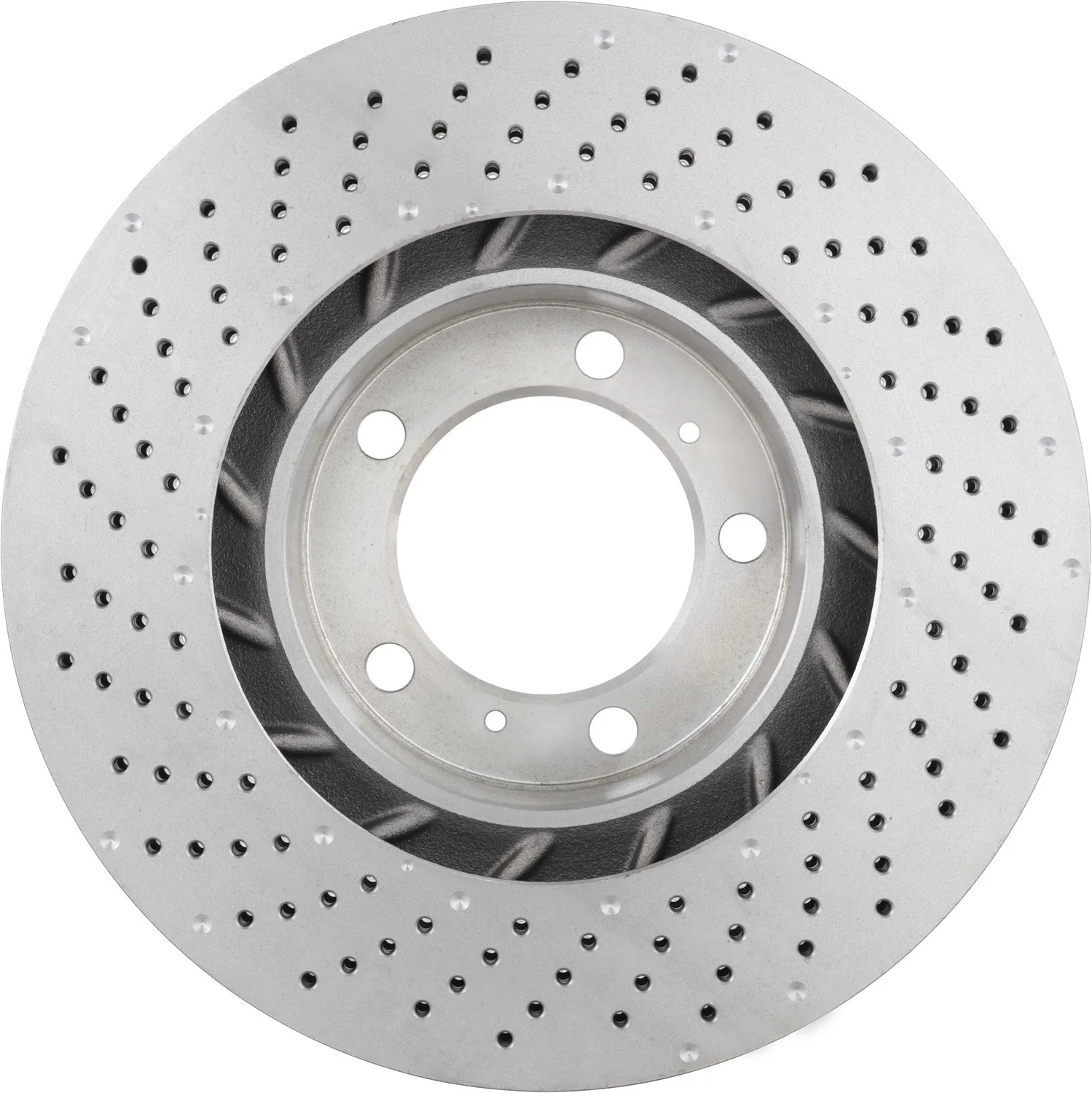

- Surface Type: X drilled for improved brake pad bite and heat management
- Outside Diameter: 330 mm (12.99 inches)
- Overall Height: 69 mm (2.72 inches)
- Center Hole Diameter: 98 mm (3.86 inches)
- Stud/Lug Hole Quantity: 5
- Weight: 9.2 kg
- Grade Type: Premium quality rotor
- ABS Tone Ring: Not included
About the Brembo PRIME Product Line
The Brembo PRIME line focuses on delivering premium-grade brake components that balance performance and durability. This product line is designed to meet the rigorous demands of high-performance vehicles like Porsche models, providing reliable stopping power and resistance to wear. The 09.D931.11 rotor exemplifies the PRIME line’s commitment to quality materials and precise manufacturing standards.
Detailed Product Description
This Brembo disc brake rotor 09.D931.11 is constructed from high carbon cast iron, which enhances thermal conductivity and reduces the risk of warping under heavy braking conditions. The vented full cast design allows for efficient heat dissipation, helping maintain consistent braking performance during aggressive driving or track use. The X drilled surface improves pad bite and helps evacuate gases and debris, contributing to better brake response. Additionally, the rust resistant coating extends the rotor’s service life by protecting against corrosion, an important feature for vehicles exposed to varying weather conditions.
Compatible Vehicles and Applications
- Compatible with Porsche 718 Boxster and 718 Cayman models
- Suitable for Porsche 911, Boxster, and Cayman vehicles requiring a 330 mm rotor
- Ideal for replacing worn or damaged rotors to restore braking efficiency
- Addresses issues such as brake fade, rotor warping, and uneven pad wear
- Helps maintain optimal braking performance for daily driving and spirited use
Installation Notes and Tips
Ensure the rotor thickness is within the specified nominal and discard limits before installation. The 09.D931.11 rotor requires a 5-lug wheel hub with a 98 mm center hole diameter. Proper cleaning of the rotor surface before installation is recommended to remove any protective coatings or residues. Use a calibrated torque wrench to tighten lug nuts to manufacturer specifications to avoid rotor distortion. Note that this rotor does not include an ABS tone ring, so verify compatibility with your vehicle’s ABS system.
Quality Assurance and Warranty
Brembo PRIME rotors are manufactured to meet strict quality standards, ensuring consistent performance and durability. The use of premium materials and advanced manufacturing processes supports long service life and reliable braking. Warranty details should be confirmed with the point of purchase or Brembo directly, as coverage may vary by region and application.
