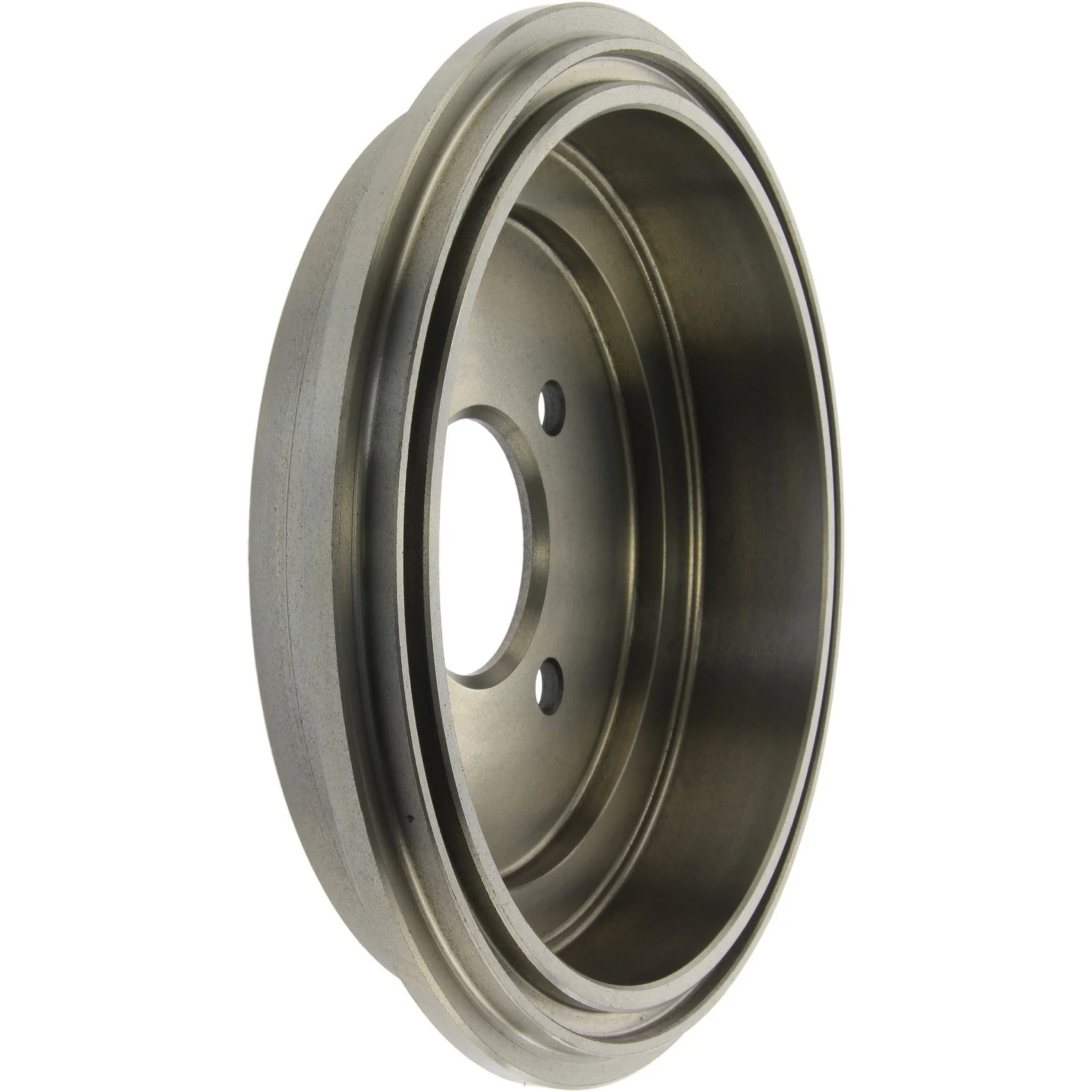

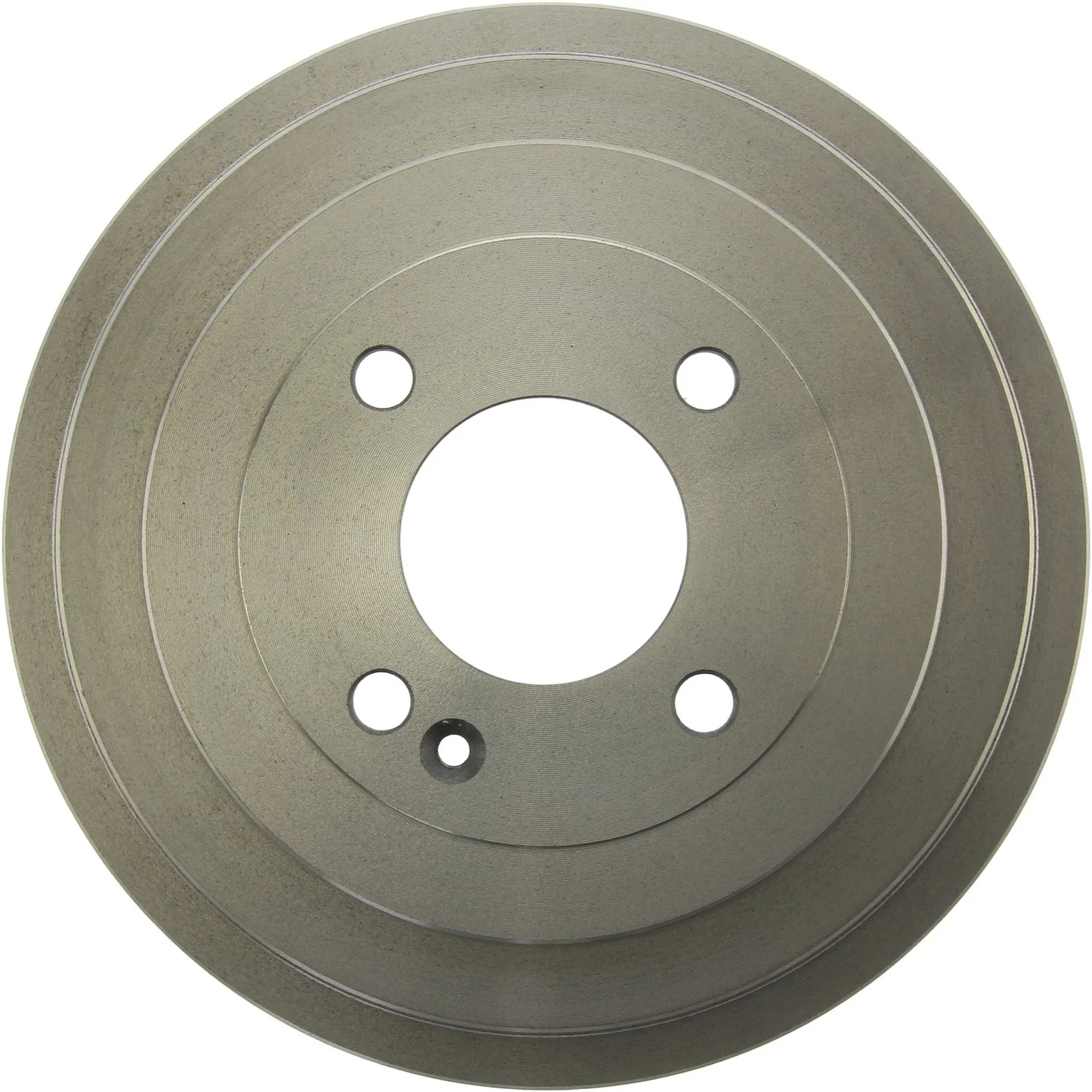

Centric 123.51015 Brake Drum - Rear
Overview of Centric C-TEK Standard Brake Drum 123.51015
The Centric C-TEK Standard Brake Drum 123.51015 is engineered for reliable braking performance on select Dodge, Hyundai, and Kia vehicles. Designed to meet OEM specifications, this brake drum ensures consistent fit and function for models like the Hyundai Accent, Kia Rio, and Dodge Attitude.
- Nominal drum diameter: 203.1 mm (7.996 in)
- Outside diameter: 252 mm (9.921 in)
- Maximum brake diameter (discard): 205.2 mm (7.070 in)
- Bolt hole quantity: 4 with 100 mm (3.937 in) bolt circle diameter
- Mounting hole diameter: 12.5 mm (0.492 in)
- Friction surface width: 36.8 mm (1.449 in)
- Height: 53.7 mm (2.114 in)
- Weight: 4.295 kg (9.45 lbs)
- Mounting type: Floating
Detailed Product Description
This Centric brake drum is part of the C-TEK Standard Brake Drums line, which focuses on delivering dependable replacement parts that adhere closely to original equipment specifications. The 123.51015 brake drum features a nominal diameter of 203.1 mm and an outside diameter of 252 mm, providing the correct dimensions for proper brake shoe contact and heat dissipation. With a friction surface width of 36.8 mm, it offers adequate braking surface area to maintain effective stopping power. The floating mounting type and four bolt holes with a 100 mm bolt circle diameter ensure secure installation and compatibility with the specified vehicle models.
Compatible Vehicles and Applications
This brake drum is compatible with the following makes and models:
- Dodge Attitude
- Hyundai Accent
- Kia Rio
It is designed to replace worn or damaged brake drums on these vehicles, restoring braking efficiency and safety.
Common Issues Addressed by This Brake Drum
- Brake drum wear causing reduced braking performance
- Excessive drum diameter beyond discard limits leading to brake fade
- Vibration or noise due to warped or damaged drums
- Uneven brake shoe contact from out-of-spec drums
- Corrosion or surface damage affecting braking reliability
Installation Notes and Tips
Ensure the brake drum 123.51015 is installed on compatible vehicles such as the Hyundai Accent, Kia Rio, or Dodge Attitude. Verify that the mounting holes align with the 100 mm bolt circle diameter and that the drum fits securely on the hub with a 62.5 mm hub hole diameter. Measure the brake diameter before installation to confirm it is within the maximum discard limit of 205.2 mm. Proper cleaning of the hub and brake components before installation is recommended to prevent noise and ensure optimal performance.
Quality Assurance and Warranty
Centric's C-TEK Standard Brake Drums are manufactured to meet or exceed OEM standards, providing consistent quality and durability. While specific warranty details for part number 123.51015 are not provided here, Centric typically offers coverage against defects in materials and workmanship. Refer to Centric's official documentation for complete warranty information.
